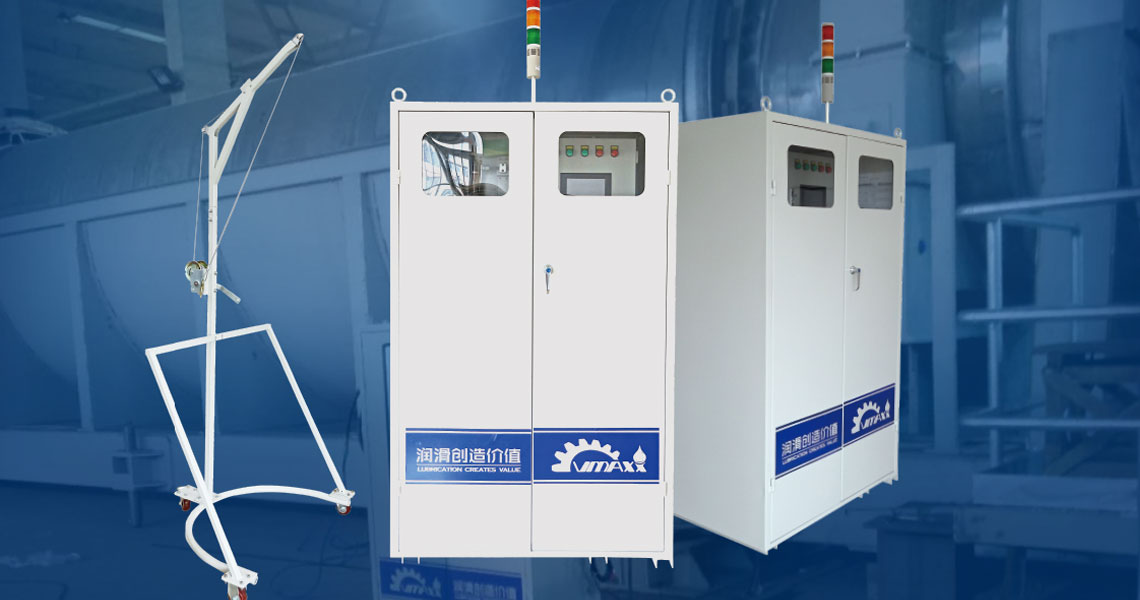

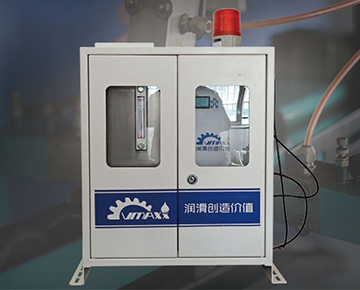

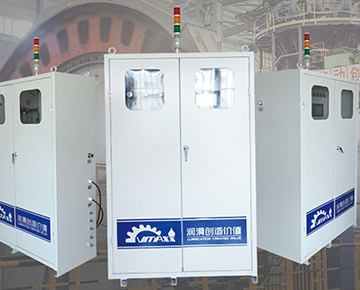

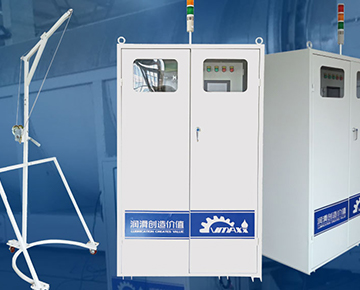

VMAXX^®️ Protective Centralized Lubrication System

The VMAXX^®️ Intelligent Automatic Centralized Lubrication System is an innovative solution designed for roller presses and grease-lubricated equipment. Using air pressure as power, the pneumatic pump accurately delivers lubricating grease to critical lubrication points such as bearings, dust seals, and chutes, enabling single-point control and adjustment to provide precise and efficient automatic lubrication. It effectively protects bearings and extends their service life. The system is equipped with a PLC controller for easy operation and a friendly human-machine interface, enabling interlocking control with the main machine system. It real-time monitors air and oil circuits, has timing and counting functions, and can flexibly adjust lubrication cycles according to actual working conditions.

Technical Specifications

• Working Medium: NLGI 000#～2# grease;
• System Flow Rate: 0.6Kg/min;
• Working Pressure Range: 15～35MPa;
• Air Supply Pressure: 0.4～0.7MPa (dry and clean compressed air);
• Power Supply Voltage: 220V AC, 50Hz;
• Power Consumption: 100W;
• Oil Storage Barrel: 180Kg;
• Gas Consumption: Approximately 0.1m³/min (inlet pressure 0.45MPa)
• Operating Environment Temperature: -5℃～75℃ (heat the grease when the temperature is too low)
• Product Dimensions: 1000 x 700 x 1720mm



Product Features and Advantages

• Precision lubrication: The pneumatic pump accurately delivers lubricating grease to critical points on a timed and quantitative basis, ensuring each lubrication point receives the appropriate amount of grease as needed;
• Centralized control: The PLC controller enables centralized management, allowing operators to monitor and manage the lubrication status of multiple devices, improving work efficiency;
• Automated operation: Capable of interlocking control with the main machine system, reducing reliance on manual operation and minimizing the possibility of human error;
• Real-time monitoring: The system can real-time monitor air and oil circuits, with timing and counting functions to provide data support for equipment maintenance;
• Point-by-point oil supply: Oil is supplied in sequence according to the set program. The lubrication pump only supplies oil to one point per unit time, and the oil volume for each point can be arbitrarily set as an integer according to needs;
• Energy saving: Adjusting lubrication cycles according to actual working conditions reduces lubricant waste and energy consumption.



Application Industries

Currently widely used in industrial sectors such as cement, mining, chemical, coal, and metallurgy. By using this system, bearing service life can be significantly extended, equipment reliability and stability improved, and maintenance costs reduced, making it an indispensable key equipment in industrial production.

---
