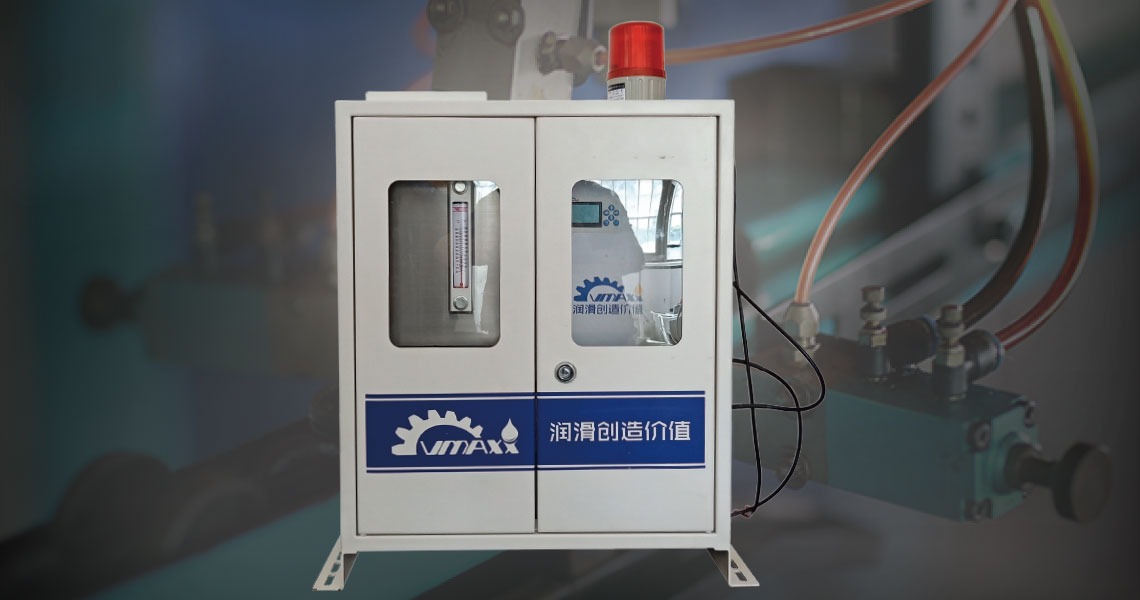

The VMAXX intelligent oil and air injection lubrication system is commonly used for conveying chains in final assembly lines, painting lines, spray painting lines, electrophoresis, and electroplating lines. It can instantly sense the displacement of lubrication points and automatically spray a定量 (quantitative) lubricating medium to the moving lubrication points. The system uses a微量油⽓喷射润滑⽅式 (micro oil-air spray lubrication method) to provide precise and reasonable lubrication for equipment.
Working Principle
The system is controlled by an infrared sensing device, which can quickly capture signals from moving mechanisms through infrared sensors (response speed 300μs) and instantly output precisely metered lubricating oil to the parts requiring lubrication.
- Air Supply Working Pressure: 4-4.5kg/cm²
- Working Voltage Range: AC 190V-240V 50Hz
- Controller Power Supply: DC24V
- Oil Supply per Node: 0.18ml
- Maximum Allowed Chain Speed: 0-20m/min
- Number of Lubrication Points: 8 points
- System Single Cycle Time Control Range: 1min－168h
- Low Oil Level Alarm Function
- Program Error Self-Diagnosis Alarm Function
- Oil Tank Capacity: 25L
- Single Lubrication Station Weight: 9.65kg
- Dimensions: 500X450X250 mm
- Compressed Air Pipe: 1 set, Length: 5M
- Compressed Air Three Components: 1 piece
- Air Inlet Ball Valve: 1 piece
- Pneumatic Pump: 1 set, Pneumatic Pump Compression Ratio 50:1
- Grease Flow Control Valve: 1 piece
- High-Pressure Resistant Grease Hose: 1 set, Length: 5.4M
- Fixed Anchor Chain: 1 pair, Length: 1.5M/root
- Adapter Cleaner: 1 piece
- Lubricator: 1 set
- WT Type Suspension Chain/Light Closed Rail Suspension Chain, Ground Chain/Plate Chain/Sleeve Roller Chain, Automobile/Motorcycle Factories/Iron and Steel Plants/Plating Factories Production Lines/Home Appliance Manufacturers
