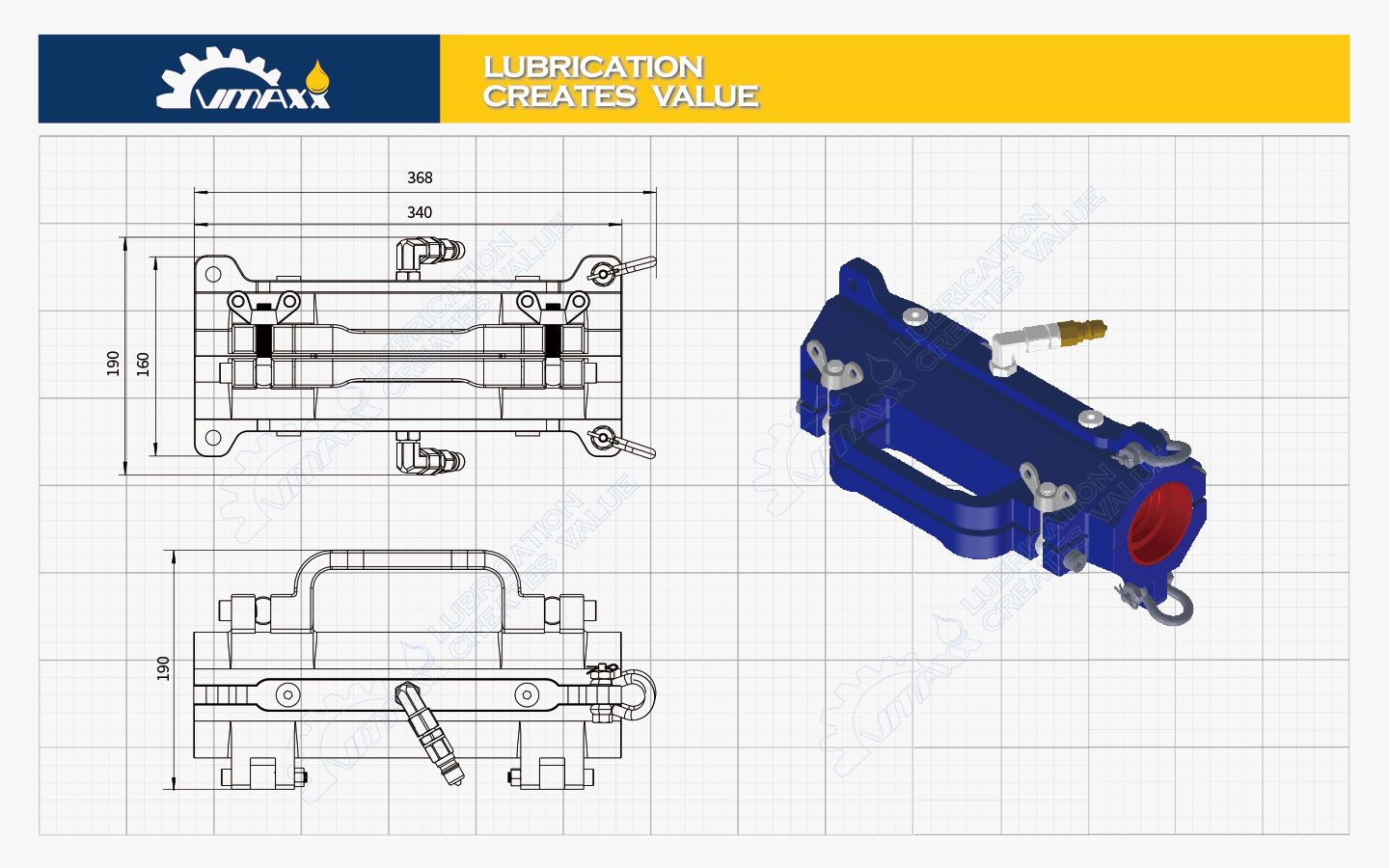

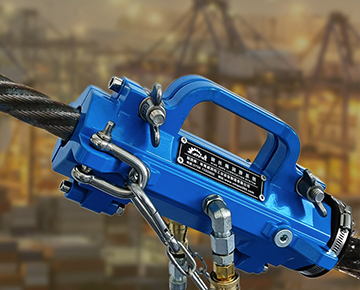

The VMAXX®️ Medium Duty Wire Rope Cleaning & Lubrication System efficiently cleans and removes scale/dirt from wire ropes while providing lubrication in a fast and safe manner, significantly improving the service life and operational safety of wire ropes. Meanwhile, the VMAXX wire rope cleaning and lubrication kit replaces slow and inefficient manual lubrication for wire rope maintenance, delivering fast and effective cleaning and lubrication at a speed of 1,000 meters per hour for wire ropes with diameters ranging from 8mm to 80mm.
- Compatible Wire Rope Diameter Range: 33 ～ 60mm
- Pressure Rating: MAX 500 bar
- Grease Displacement: MAX1.3 Kg/min
- Suitable Lubricants: NLGI 0# to 2#
- Input Pressure: Compressed Air 3 ～ 10 Bar
- Grease Container Size: 15kg
- Gross Weight: 30 kg
- Compressed Air Pipe: 1 set, Length: 5M
- Compressed Air Three Components: 1 piece
- Air Inlet Ball Valve: 1 piece
- Pneumatic Pump: 1 set, Pneumatic Pump Compression Ratio 50:1
- Grease Flow Control Valve: 1 piece
- High-Pressure Resistant Grease Hose: 1 set, Length: 5.4M
- Fixed Anchor Chain: 1 pair, Length: 1.5M/root

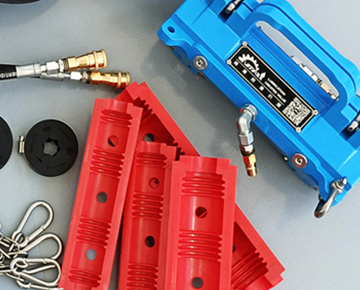

- Adapter Cleaner: 1 piece
- Lubricator: 1 set
- Ship mooring ropes, deck equipment, gantry cranes, ROV umbilical cables, cargo cranes, mine hoists, onshore and offshore oil rigs, ship loaders, etc;
- Bridge cranes, mobile cranes, non-destructive testing services, mining hoists, lifting wire ropes;
- Water gates, ship locks, tower cable-stayed wire ropes, etc.
Technical Specifications
Main Component Parameters
Application Industries
